ALTA Surveys for Commercial Parcel Assemblies

A developer wants to join several lots into one big site. This kind of survey work is not like a normal purchase. Each lot has its own paperwork. Each lot has its own history. Some lots have small problems. Those problems often hide until the lots come together. An ALTA survey brings all this information into one clear picture. This helps before an area project moves forward.

Joining lots is not just a bigger version of buying one lot. It means matching separate legal records. Those records must line up. If they don’t, the project can hit trouble later.

How Parcel Assemblies Change the Survey Scope

An ALTA survey for a joined site must cover every lot in the deal. It can’t just show the outside edge of the new site. The surveyor checks each lot’s own lines. Then the surveyor shows how the lots fit together.

This wider job changes a few things. The surveyor needs paperwork for each lot. Field crews must walk the full site. The final map must show each lot’s own lines. It must also show the new, bigger outline. If a crew treats the whole area like one lot, they can miss problems. Those problems often show up only when you check each lot on its own.

This extra work pays off for buyers and lenders. It gives everyone a clear record. That record shows what land is joining together.

Reconciling Separate Legal Descriptions Across Adjoining Parcels

Each lot in the group has its own legal write-up. These were often written at different times. Different surveyors may have used different starting points. Checking these write-ups means finding out if they truly match. They should match the way the title records say they do.

Gaps and overlaps show up more than people think. This is true for older lots. It is common in older parts of Chicago. A line in one deed might not match the lot next to it. This can happen even after both lots sat side by side for years.

An ALTA survey finds these gaps early. There is still time to fix them. A fix might be a signed line agreement. It might be a new deed. The title company and lawyers can agree on another fix too. Finding a gap after closing costs much more to fix.

Identifying Internal Parcel Lines Before Site Planning

The survey checks the outer edge of the joined site first. Then it must show where the old lines used to sit. These old lines may not show on the final site plan. They still matter for planning.

Old lot lines can cause a few problems. They can affect where old buildings sit. They can affect old easements or utility rights. They can affect setback or zoning rules too. Some rules were tied to one lot, not the whole new site. Architects and engineers need this information. It helps them plan around old limits. This way they avoid delays partway through the project.

Zoning and permit rules can change by city. They can change by county too. They depend on the size of the project. Because of this, it helps to check with offices. Ask how the old lot history might affect the new plan.

Reviewing Access and Recorded Rights Across the Assembly

Joining lots often means joining a mix of legal rights. These rights don’t merge just because the land does. Easements and access rights often stay tied to one lot. They may or may not reach the rest of the site. It depends on how they were written.

An ALTA survey places these rights right on the site map. This lets everyone see where an easement runs. It shows if the right crosses into another lot. It shows if an access point serves the whole site or just one lot. This matters a lot for factory and business sites. Truck routes and shared utility lines were often set up years ago.

Title companies and lawyers check these rights closely. They do this before closing. Having them on the survey map makes that check much easier.

Using the ALTA Survey During Site Consolidation

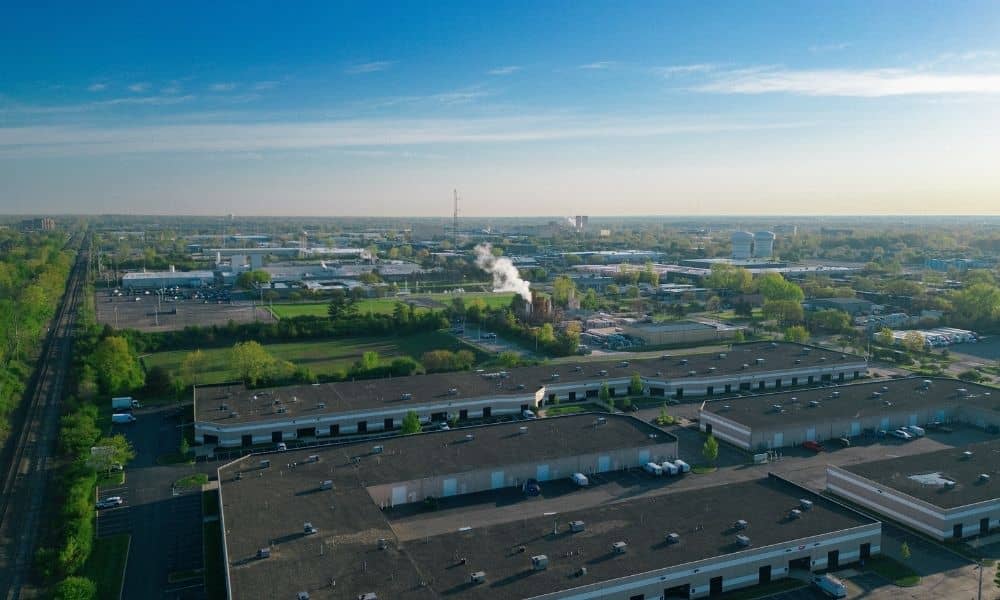

Chicago’s business and industrial areas have many older, smaller lots. These often join together to form bigger sites. This happens as more people invest in an area. An ALTA survey supports this kind of work. It gives developers, lenders, and title companies one clear record. That record covers the joined property before the new site plan takes shape.

This is not the same as a normal survey for a property that already has several lots. A joined-lot survey supports the act of combining separate properties. It often happens before the new legal write-up even exists. Getting this survey done early helps everyone. It gives a clear starting point for talking through the deal. It also helps avoid fights once building plans start.
